2.2.3 Hybrid connectors (part one)

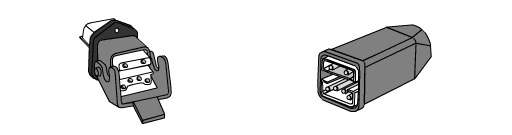

Hybrid connectors simplify installation of PROFIBUS stations by wiring the voltage supply and the PROFIBUS cable in a single connector. Preassembled cables, which are available in different lengths from the cable manufacturers, provide a particularly simple solution. When it is necessary to assemble hybrid connectors on site, the manufacturer’s instructions must be followed.
![](../Bilder/2_2_3_Hybridstecker.gif)
The contacts of the hybrid plug are generally crimped. Only suitable crimping tools should be used; these are generally available from the connector manufacturer. Only correctly crimped connections ensure a permanent, high-quality connection.
|
