P. 7

Proof of performance

NEU

Verlieren Sie

Geld durch

Netzwerkausfälle?

Proﬁnet-Störungen lokalisieren,

reparieren und verhindern!

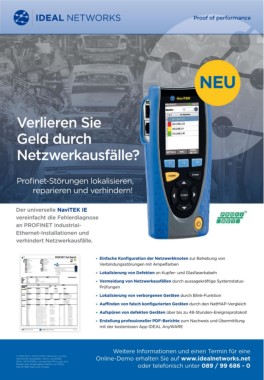

Der universelle NaviTEK IE
vereinfacht die Fehlerdiagnose
an PROFINET Industrial-
Ethernet-Installationen und
verhindert Netzwerkausfälle.

PROFINET Test Report • Einfache Konﬁguration der Netzwerkknoten zur Behebung von
NaviTEK-NT Test Report
Job Name: MyJob Owner: JOHN SMITH PASS
Date Tested: January 12 2019 Company: Automation Ltd
Time Tested: 16:25 Address 1: Wed Industrial Estat 0003
Info 1: Motion 6 Address 2: George Street Verbindungsstörungen mit Ampelfarben
Info 2: Cabinet 6 City: Manchester ESN: 001606-887FF5
Info 3: Building ER4 State:
System Name:
Info 4: 27 Harrison road Zip: M50 7FG System Description: Siemens SIMATIC NET SCALANCE XB208 6GK5 208-0BA
Info 5: Warwick Country: UK Switch IP Address: 192.168.1.19
Info 6: CV37 9HR Phone1: 01490 67890 Port Address: 20:87:56:64:C3:E1
Info 7: UK Phone2: 0750052321 Port Description: port-001 Siemens SIMATIC NET Ethernet Port X1 P
Info 8: 01926 562980 Capabilities: B • Lokalisierung von Defekten an Kupfer- und Glasfaserkabeln
VLAN: -
PoE Power (W):
Setup Results Detected Tagged VLAN IDs
Port Auto RJ45 -
Line Rate Auto 100 Mb/s
Duplex Auto Full Duplex • Vermeidung von Netzwerkausfällen durch aussagekräftige Systemstatus-
IPv4 Static Assigned 192.168.1.20
IPv6 Disabled
Setup Results
PROFINET Nodes Status Prüfungen
Nodes 4
Name of Station MAC Address IP Address NetMask Gateway
Node Network et200sp50 28:63:36:e3:82:a8 192.168.1.50 255.255.255.0 0.0.0.0
switch 20:87:56:64:c3:e0 192.168.1.19 255.255.255.0 0.0.0.0
et200sp2 28:63:36:e3:83:2f 192.168.1.3 255.255.255.0 0.0.0.0
s7-1200plc 28:63:36:fa:fe:2f 192.168.1.4 255.255.255.0 192.168.1.4
Name of Station Type of Station Device Role Vendor Name Device ID System Description
Node Details et200sp50 ET200SP 1 xxxx (002a) 0313 Siemens, SIMATIC S7, IM155-6PN BA • Lokalisierung von verborgenen Geräten durch Blink-Funktion
switch SCALANCE XB-200 1 xxxx (002a) 0a06 Siemens, SIMATIC NET, SCALANCE XB208
et200sp2 ET200SP 1 xxxx (002a) 0313 Siemens, SIMATIC S7, IM155-6PN BA
s7-1200plc S7-1200 2 xxxx (002a) 010d Siemens, SIMATIC S7, CPU-1200
Name of Station Serial Number Firmware Version Hardware Version Order ID
Node Hardware et200sp50 S C-J9SD02092017 3.2.2 3. 0. 0 6ES7 155-6AR00-0AN0
switch SVPJD150047 02.00.02 2 6GK5 208-0BA00-2AB2
et200sp2 S C-J9SD03082017 3.2.2 3. 0. 0 6ES7 155-6AR00-0AN0 • Aunden von falsch konﬁgurierten Geräten durch den NetMAP-Vergleich
s7-1200plc S C-K1LL1636 4.2.1 6 6ES7 211-1AE40-0XB0
Name of Station Link Description Link Status Link Up Time Link Speed (Mb/s) MTU Link Type
Port Details et200sp50 Siemens, SIMATIC S7, internal, X1 Up 7 days, 5:33:51.30 100 1,518 ethernetCsmacd
et200sp50 Siemens, SIMATIC S7, Ethernet Port, X1 P1 Up 3 days, 21:27:42.70 10 1,518 ethernetCsmacd
et200sp50 Siemens, SIMATIC S7, Ethernet Port, X1 P2 Down - 100 1,518 ethernetCsmacd
switch Siemens, SIMATIC NET, Ethernet Port, X1 Up 0 days, 0:0:15.3 100 1,500 ethernetCsmacd
P1
switch Siemens, SIMATIC NET, Ethernet Port, X1 Up 0 days, 0:38:43.54 100 1,500 ethernetCsmacd
P2
switch Siemens, SIMATIC NET, Ethernet Port, X1 Up 0 days, 0:38:43.78 100 1,500 ethernetCsmacd • Aufspüren von defekten Geräten über bis zu 48-Stunden-Ereignisprotokoll
P3
P4
switch Siemens, SIMATIC NET, Ethernet Port, X1 Up 0 days, 0:38:43.71 100 1,500 ethernetCsmacd
switch Siemens, SIMATIC NET, Ethernet Port, X1 Up 0 days, 0:38:43.12 10 1,500 ethernetCsmacd
P5
switch Siemens, SIMATIC NET, Ethernet Port, X1 Down - 100 1,500 ethernetCsmacd
P6
switch Siemens, SIMATIC NET, Ethernet Port, X1 Down - 100 1,500 ethernetCsmacd
P7
switch Siemens, SIMATIC NET, Ethernet Port, X1 Up 0 days, 0:0:24.65 100 1,500 ethernetCsmacd
P8
switch Siemens, SIMATIC NET, L3 VLAN, VLAN1 Up 0 days, 0:38:43.77 1,000 1,500 l3ipvlan
switch Siemens, SIMATIC NET, loopback Up 0 days, 0:38:52.5 1,000 1,500 softwareLoopback
et200sp2 Siemens, SIMATIC S7, internal, X1 Up 4 days, 3:13:34.40 100 1,518 ethernetCsmacd • Erstellung professioneller PDF-Berichte zum Nachweis und Übermittlung
et200sp2 Siemens, SIMATIC S7, Ethernet Port, X1 P1 Up 0 days, 0:0:30.40 100 1,518 ethernetCsmacd
et200sp2 Siemens, SIMATIC S7, Ethernet Port, X1 P2 Down - 100 1,518 ethernetCsmacd
Siemens, SIMATIC S7, internal, X1
mit der kostenlosen App IDEAL AnyWARE
s7-1200plc Up 7 days, 5:33:38.80 100 1,500 ethernetCsmacd
s7-1200plc Siemens, SIMATIC S7, Ethernet Port, X1 P1 Up 0 days, 0:38:54.60 100 1,500 ethernetCsmacd
Created: January 12 2019 17:12 Page 6 of 13
Weitere Informationen und einen Termin für eine
© 2019 IDEAL INDUSTRIES Networks Limited.
Alle Rechte vorbehalten. IDEAL AnyWARE, Online-Demo erhalten Sie auf www.idealnetworks.net
IDEAL NETWORKS, und die NaviTEK-Logos sind
Marken oder eingetragene Marken von IDEAL oder telefonisch unter 089 / 99 686 - 0
INDUSTRIES Networks Limited.
PI-Magazin 2 /2019 7
